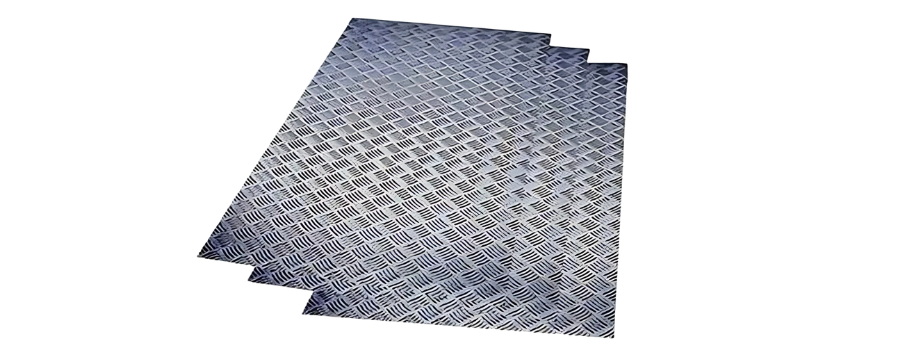

Chequered Plates, also known as MS Chequered Plates or Tread Plates, are steel plates with a regular pattern of raised lines or diamonds on one side. These raised patterns provide a non-slip surface, making them ideal for flooring, stair treads, ramps, walkways, and platforms in industrial and commercial settings.
Manufactured from high-quality mild steel, chequered plates are known for their strength, durability, and skid resistance. They are easy to weld, cut, and form, and can be used both indoors and outdoors. Available in various thicknesses and sizes, they are commonly used in fabrication, transportation (bus/truck flooring), construction, and heavy-duty structural applications.
| Size mm | Weight Kgs./M2 |
|---|---|
| 3 | 24.5 |
| 4 | 33.6 |
| 5 | 45.3 |
| 6 | 53.2 |
| 7 | 61.1 |
| 8 | 68.1 |
| 10 | 84.0 |
| 12 | 100.3 |
