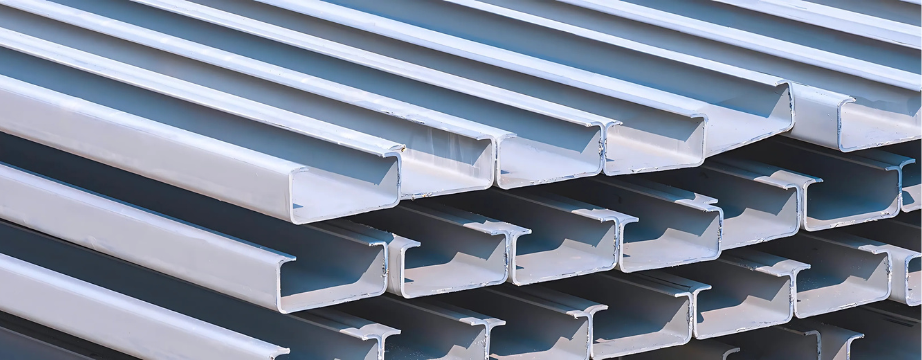

MS Channels, also known as C-Channels or ISMC (Indian Standard Medium Channel), are roll-formed mild steel sections shaped like a squared "C". They are widely used in construction, fabrication, and support applications due to their excellent strength-to-weight ratio. MS Channels provide structural support in frames, machinery, bridges, trailers, and building frameworks. Their open design allows for easy attachment and integration into various structures. With high weldability, durability, and resistance to bending, MS Channels are a preferred choice for both industrial and architectural projects.
SIZE (mm) | Weight (kg/m) | SIZE (mm) | Weight (kg/m) |
---|---|---|---|
75x40 | 6.80 | 125x66 | 13.70 |
100x50 | 9.20 | 150x76 | 17.70 |
125x65 | 12.80 | 175x77 | 21.70 |
150x75 | 16.40 | 200x76 | 24.30 |
175x75 | 17.60 | 225x83 | 30.70 |
200x75 | 21.50 | 250x82 | 34.20 |
225x80 | 26.00 | 300x92 | 41.50 |
250x80 | 30.40 | ||
300x90 | 33.10 |
