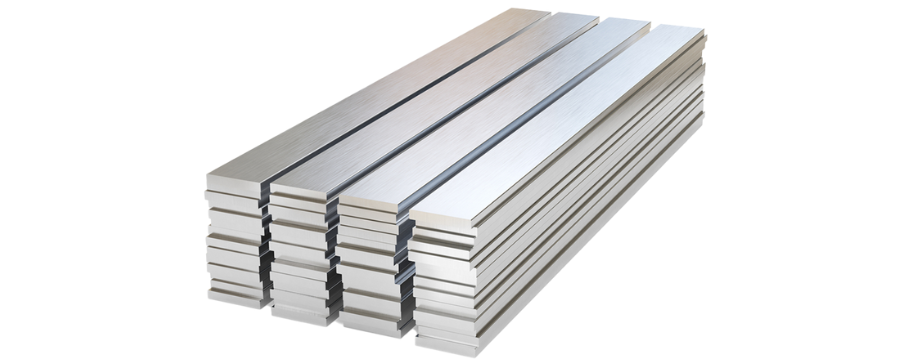

MS Flat Bars are rectangular-shaped mild steel sections widely used in construction, fabrication, and various engineering applications. Known for their strength, versatility, and cost-effectiveness, MS Flats offer excellent durability and are easy to weld, cut, drill, and shape to suit specific requirements. These flat bars are ideal for base plates, frames, structural supports, grills, gates, and more. Their consistent thickness and smooth finish make them perfect for both industrial and domestic use, providing reliable performance in load-bearing and structural applications.
| SIZE (mm) | Weight (kg/m) | SIZE (mm) | Weight (kg/m) |
|---|---|---|---|
| 12x3 | 0.28 | 65x6 | 3.10 |
| 16x3 | 0.38 | 65x8 | 4.10 |
| 16x5 | 0.63 | 65x10 | 6.10 |
| 20x3 | 0.47 | 65x12 | 7.30 |
| 20x4 | 0.79 | 65x16 | 9.80 |
| 20x6 | 0.94 | 65x20 | 13.20 |
| 25x6 | 1.20 | 65x25 | 16.50 |
| 25x10 | 2.00 | 75x6 | 3.50 |
| 25x12 | 2.40 | 75x8 | 4.70 |
| 30x5 | 1.20 | 75x10 | 5.90 |
| 30x6 | 1.40 | 75x12 | 7.10 |
| 30x10 | 2.40 | 75x16 | 9.40 |
| 30x12 | 2.80 | 75x20 | 11.80 |
| 30x16 | 3.80 | 75x25 | 14.70 |
| 35x6 | 1.60 | 75x32 | 18.80 |
| 35x10 | 2.80 | 100x6 | 4.70 |
| 35x12 | 3.30 | 100x8 | 6.30 |
| 35x16 | 4.40 | 100x10 | 7.90 |
| 40x3 | 0.90 | 100x12 | 9.50 |
| 40x5 | 1.50 | 100x16 | 12.60 |
| 40x6 | 1.90 | 100x20 | 15.70 |
| 40x10 | 3.10 | 100x25 | 19.60 |
| 40x12 | 3.70 | 100x32 | 25.10 |
| 40x16 | 5.00 | 100x40 | 31.40 |
| 40x20 | 6.20 | 125x6 | 5.90 |
| 45x6 | 2.10 | 125x10 | 9.80 |
| 45x10 | 3.50 | 125x12 | 11.80 |
| 50x3 | 1.20 | 130x10 | 10.20 |
| 50x5 | 2.00 | 130x12 | 12.40 |
| 50x6 | 2.40 | 150x10 | 11.80 |
| 50x8 | 3.10 | 150x12 | 14.10 |
| 50x10 | 3.90 | 150x16 | 18.80 |
| 50x12 | 4.70 | 150x20 | 23.60 |
| 50x16 | 6.30 | 150x25 | 29.50 |
| 50x20 | 7.80 | 180x20 | 28.30 |
| 50x25 | 9.80 | - | - |
