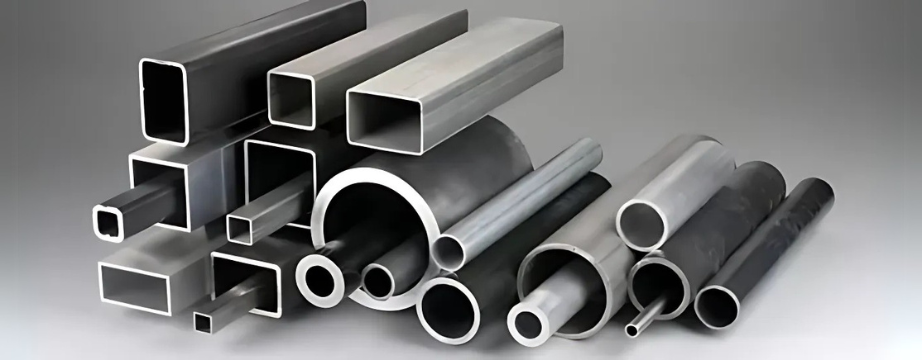

MS Pipes (Mild Steel Pipes) are cylindrical hollow sections made from low-carbon steel, widely used for conveying fluids, gases, and structural purposes. These pipes offer excellent ductility, strength, and weldability, making them suitable for a wide range of industrial and construction applications. MS Pipes are available in various diameters and thicknesses and can be easily cut, bent, and fabricated. They are commonly used in plumbing, irrigation, fencing, scaffolding, automotive frameworks, and structural supports. With a smooth finish and strong corrosion resistance (especially when galvanized), MS Pipes provide a durable and cost-effective solution for long-term use.
| Size (mm) | A (kg/m) | Weight A (kg/m) | B (kg/m) | Weight B (kg/m) | C (kg/m) | Weight C (kg/m) |
|---|---|---|---|---|---|---|
| 15 | 2.0 | 0.86 | 2.6 | 1.10 | 3.2 | 1.30 |
| 20 | 2.3 | 1.25 | 2.6 | 1.41 | 3.2 | 1.69 |
| 25 | 2.6 | 1.80 | 3.2 | 2.18 | 4.0 | 2.63 |
| 32 | 2.6 | 2.30 | 3.2 | 2.80 | 4.0 | 3.43 |
| 40 | 2.6 | 2.93 | 3.2 | 3.22 | 4.0 | 3.95 |
| 50 | 2.9 | 3.70 | 4.0 | 4.56 | 4.5 | 5.60 |
| 65 | 3.2 | 5.19 | 3.6 | 5.83 | 4.5 | 7.14 |
| 80 | 3.2 | 6.12 | 4.0 | 7.10 | 5.0 | 8.93 |
| 100 | 3.6 | 8.90 | 4.5 | 11.12 | 5.4 | 13.19 |
| 125 | - | - | 4.8 | 14.54 | 5.4 | 16.34 |
| 150 | - | - | 4.8 | 17.28 | 5.4 | 19.44 |
