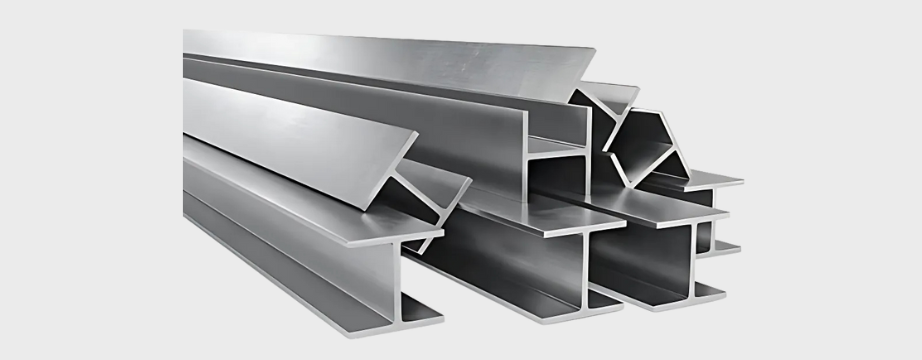

MS Beams, or Mild Steel Beams, are essential structural components widely used in construction and industrial applications. Known for their high strength, versatility, and durability, these beams provide critical support in load-bearing frameworks. Manufactured using premium-grade mild steel, they offer excellent weldability, workability, and structural stability.
These beams are available in various shapes such as I-Beams (or H-Beams), C-Channels, T-Beams, and L-Angles, each designed to serve specific structural purposes. I-Beams are ideal for heavy loads and long spans, while C-Channels and Angle Beams are perfect for lighter frameworks and reinforcement structures.
| SIZE (mm) | Weight (kg/m) | SIZE (mm) | Weight (kg/m) |
|---|---|---|---|
| 100x50 | 08.00 | 160x74 | 17.90 |
| 100x70 | 11.50 | 175x85 | 19.20 |
| 100x75 | 11.50 | 200x100 | 25.40 |
| 116x100 | 23.00 | 200x200 | 49.40 |
| 120x58 | 11.10 | 200x140 | 28.80 |
| 140x66 | 14.40 | 225x110 | 31.20 |
| 140x73 | 14.70 | 250x125 | 37.20 |
| 125x70 | 13.20 | 300x140 | 45.10 |
| 150x50 | 07.10 | 350x140 | 52.90 |
| 150x75 | 15.00 | 400x140 | 62.60 |
| 150x150 | 37.10 | 450x150 | 73.10 |
| 150x80 | 14.90 | 500x180 | 87.70 |
| 600x210 | 99.50 |
