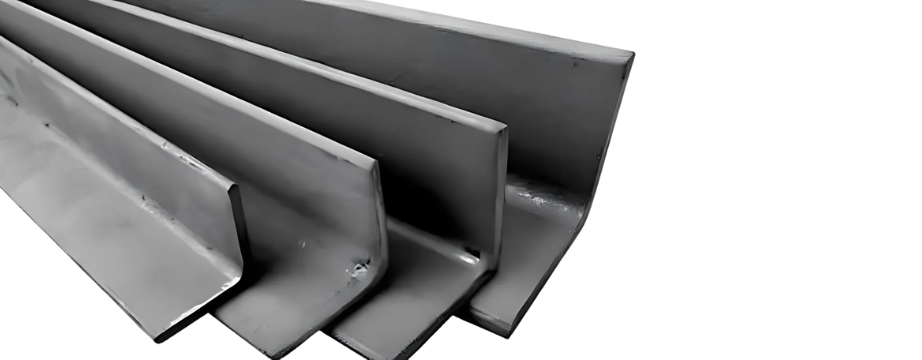

MS Unequal Angles are L-shaped steel sections where the two legs are of different lengths. These angles are specifically designed to provide additional strength and support in applications where structural balance or asymmetrical load-bearing is required. Made from high-quality mild steel, they offer excellent flexibility, weldability, and durability. MS unequal angles are commonly used in bridges, towers, frames, and industrial structures where customized support and reinforcement are crucial. Their unique shape allows for better alignment and enhanced performance in architectural and engineering designs.
SIZE (mm) | Weight (kg/m) | SIZE (mm) | Weight (kg/m) |
---|---|---|---|
45x30x5 | 2.80 | 100x75x8 | 10.50 |
45x30x6 | 3.30 | 100x75x10 | 13.00 |
65x45x6 | 6.40 | 125x75x8 | 12.10 |
75x50x6 | 5.60 | 125x75x10 | 14.90 |
75x50x8 | 7.40 | 150x115x10 | 20.20 |
75x50x10 | 9.00 | 150x115x10 | 23.80 |
90x60x6 | 6.80 | 150x115x16 | 31.30 |
90x60x10 | 11.00 | - | - |
